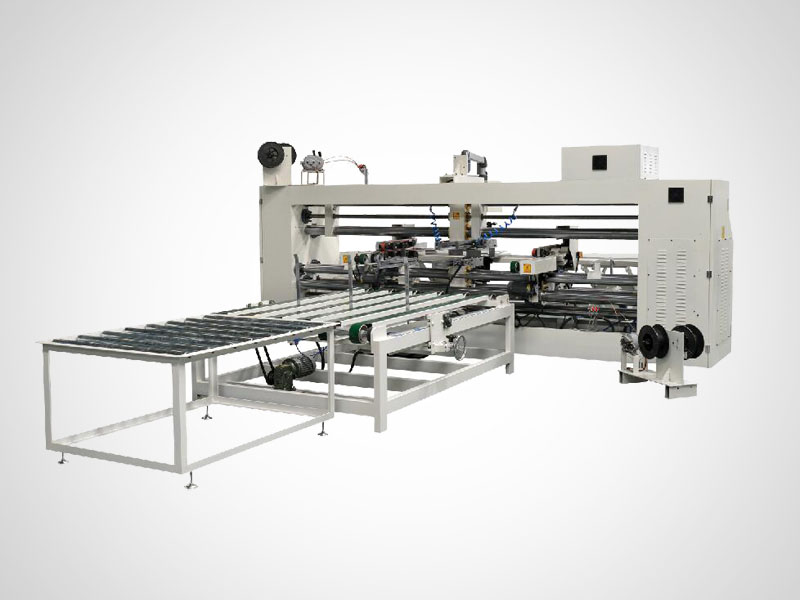

Detailed description about double head stitcher for big corrugated carton:
1.1). Application:
The double pcs stitcher is used to stitch three-layer and five-layer big carton, also applicable to cartons with bottom but without cover.
1.2). Main characteristics
1. Single nail, double nails or strengthened nail can be nailed
2. Sheet-conveying part counts automatically and send the bundle to bind
3. The position to nail the first nail: 25mm
4. Max. Slotted nail length: 600mm
5. Suitable wire to nail: 17#, 18#
6. Stitching pitch (small ~big): 30~120mm
7. Machine speed: 500 stitches/minute
8. Wire-sending length of nailing wire: 36mm/40mm (if the paperboard is made of 7 layers, this should be informed to us in advance)
9. Fast change size within one minute
10. Easy operation, experience is not required
11. Sheet-conveying part counts automatically and send the bundle to bind
12. Touch screen operation
13. Adopting servo system
14. Size can be controlled automatically, touch screen display and fault instruction
15. Suitable to nail/stitch three-layer and five-layer small cartons with/without cover
16. Adopting servo system
1.3). Main technical data:
Item | Description | Model | ||
AXD-029A | AXD-029B | AXD-029C | ||

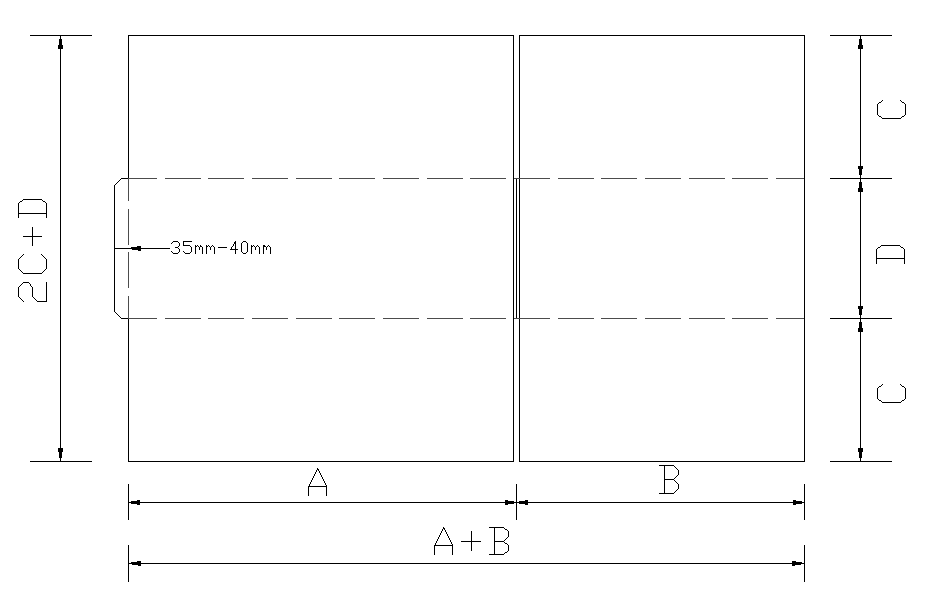

1 | Max. sheet size, namely (A+B) | 2400mm | 2700mm | 3000mm |
2 | Min. sheet size, namely (A+B) | 530mm | 530mm | 530mm |
3 | Max. sheet length, namely A | 2250mm | 2550mm | 2850mm |
4 | Min. sheet length, namely A | 350mm | 350mm | 350mm |
5 | Max. Sheet width, namely B | 1200mm | 1200mm | 1200mm |
6 | Min. Sheet width, namely B | 180mm | 180mm | 180mm |
7 | Min. Sheet height, namely C+D+C | 400mm | 400mm | 400mm |
8 | Stitching pitch | 30~120mm | 30~120mm | 30~120mm |
9 | No. Of stitches | 1~ 99 nails | 1~ 99 nails | 1~ 99 nails |
10 | Machine speed | 500 nails/minute | ||
11 | Driven motor | 18HP | 18HP | 18HP |
12 | Machine total length | 7280mm | 7280mm | 7280mm |
13 | Machine total width | 4150mm | 4450mm | 4750mm |
14 | Machine weight | 5800kg | 5900kg | 6000kg |
beyond above dimensions can be customized ,such as type of 3300,3600,4000;LCD TV boxes and special-shaped boxes also need to customized.
1.4). Brands of the main parts mounted on the machine
1. Servo system
a. Servo motor: Japan YASKAWA
b. Motor: hangxin in Taiwan
c. Gear motor reducer: Hang xin in Taiwan
d. PLC controller: OMRON
e. Touch screen: WEINVIEW in Taiwan
2. Electrical control system
a. Circuit breaker: SHIHLIN in Taiwan
b. Contactor: SHIHLIN in Taiwan
c. Thermal relay: SHIHLIN in Taiwan
d. Photoelectric switch: FOTEK
e. Travel switch: TEND in Taiwan
f. Button: TEND in Taiwan
g. Intermediate relay: SCHNEIDER
3. Gas channel system:
a. Cylinder: AIRTAC
b. Electromagnetic valve: AIRTAC
4. Transmission system:
a. Belts: THREE FIVE in taiwan
5. Bearing: UBC MZD TR
