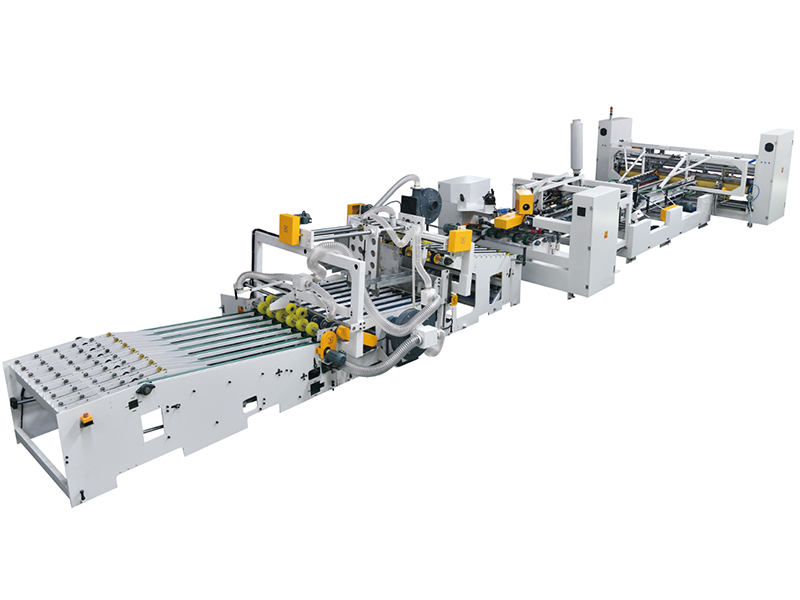

1、features
1.1 only stitching single pcs carton,do single stitching,double stitching and strength stitching.
1.2 touch screen with operation&error information，could save order info. less than 30 pcs.
1.3 feeding with belt type, add servo motor to adjust the spacing between the cartons.
1.4 adopting a air suction fan,folding belt speed can control.
1.5 add pre-press roller to press sheet again,improve the nailing effect.
1.6 side flap device to assure the feeding tidy&smooth.
1.7counting unit： belt conveyed,automatic counting and precise.
1.8 machine contain feeding unit,folding unit,stitching unit,counting unit,turning unit（option）
2、machine specifications and parameters
Model | AXD-025 | ||
Max（A+B）*2 | 2800mm | speed | 500stitching/min |
Min（A+B）*2 | 680mm | Stitching pitch | 30~120mm |
Max(C+D+C) | 1200mm | No. of stitching | 1~99stitching |
Min (C+D+C) | 300mm | Stitching Wire Length | 36mm/40mm |
Min D | 100mm | Paper Board Thickness | 3-12mm |
Stitching sheet | 35-40mm | Wire size | 17#/18# |
First nail | 25mm | Power | 27KW |
Height of feeder | 600mm | Machine Length | 15500mm |
Weight | 10000kg | Machine width | 3360mm |
*Speed:For three nails in carton, it is about 60 pcs boxes per minute can be stitched.
*standard wire size:17# (2.0*0.7mm) , 18#(1.81*0.71mm）
*2.2*0.9mm wire size，we need sample to test in machine；feeding wire length 40mm is suit to 10.5mm thickness paper。

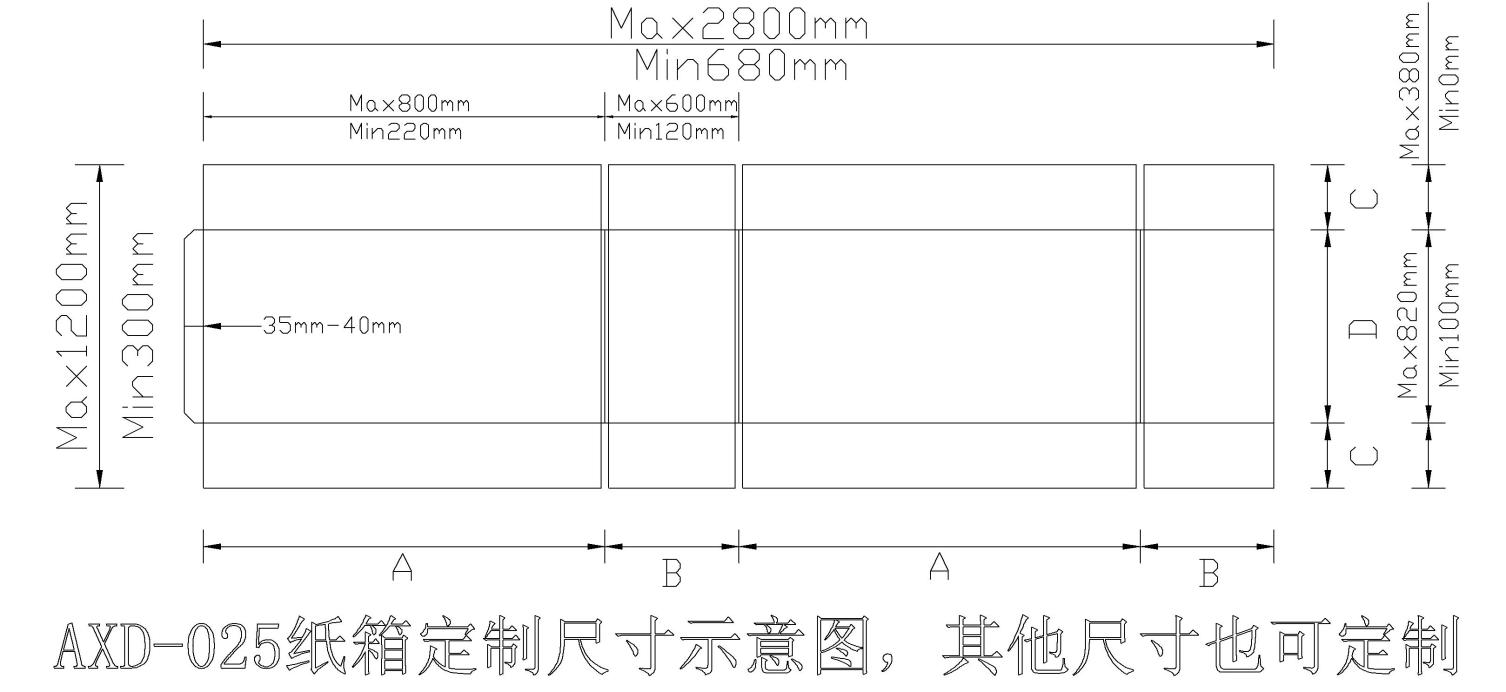

3、carton comparison diagram

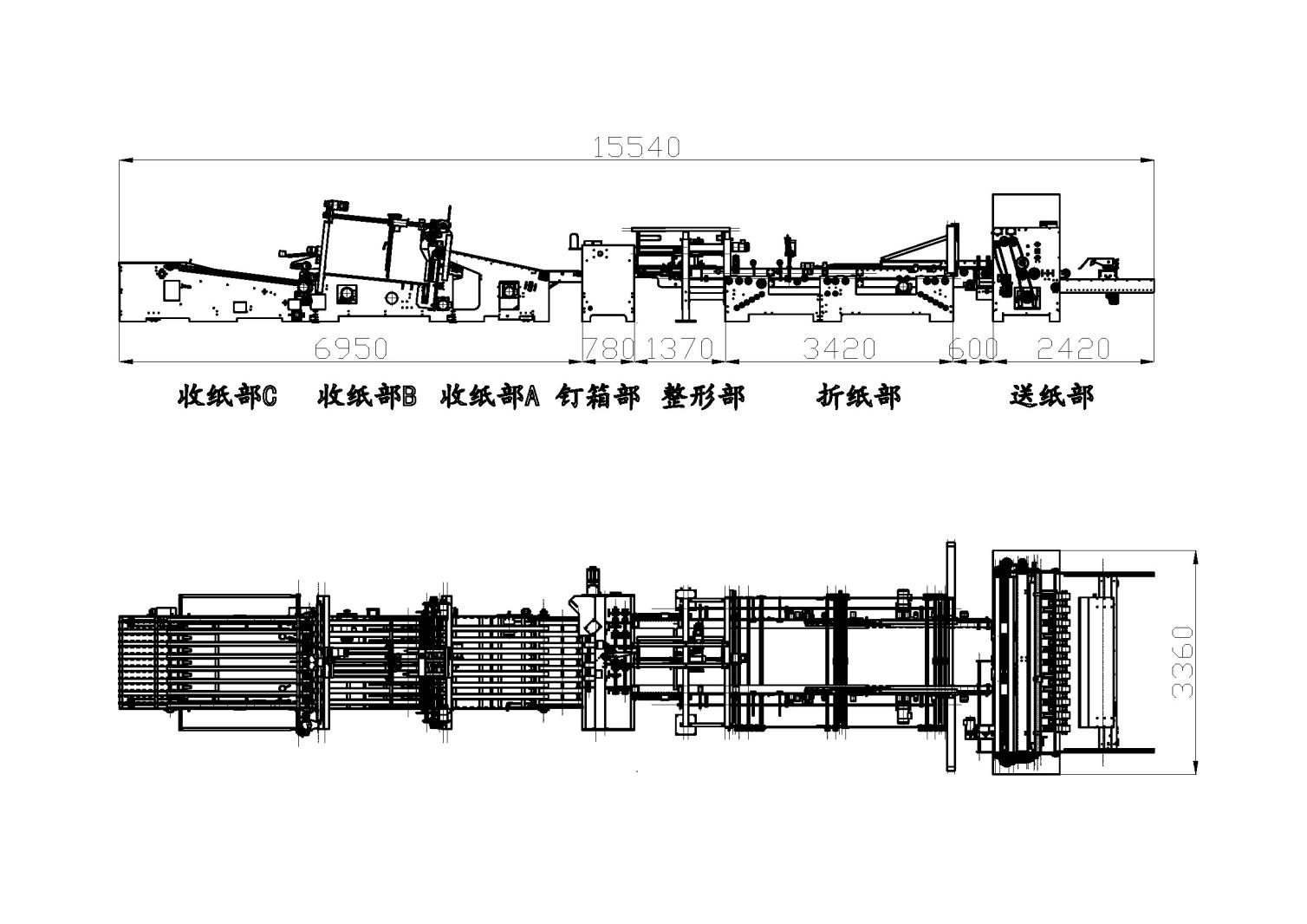

4、floor plan
5、configuration table
Item | Description | Brand | |
1 | Servo system | Servo motor(feeding unit) | CHINESE BRAND |
PLC+Touch screen(feeding unit) | X-SIGHT IN CHINA | ||
Servo motor(stitching unit) | YASKAWA IN JAPAN | ||
PLC+Touch screen(stitching unit) | OMRON and WEINVIEW | ||
Motor | HANGXIN IN TAIWAN | ||
Gear motor reducer | HANGXIN IN TAIWAN | ||
2 | Electrical control system | Contactor | SCHNEIDER IN FRANCE |
Circuit breaker | |||
Thermal relay | |||
FOTEK IN TAIWAN | |||
Button | TEND IN TAIWAN | ||
Travel switch | |||
intermediate relay | SCHNEIDER IN FRANCE | ||
3 | Cylinder | AIRTAC IN TAIWAN | |
Electromagnetic valve | |||
4 | Transmission system | Bearing | UBC IN AMERICAN TR/MZD/HRB IN CHIAN |
Belt | THREE FIVE IN TAIWAN | ||
*remarks：Due to the technological upgrading, Gangxu reserves the right to modify the relevant parameters and functions, without prior notice .
